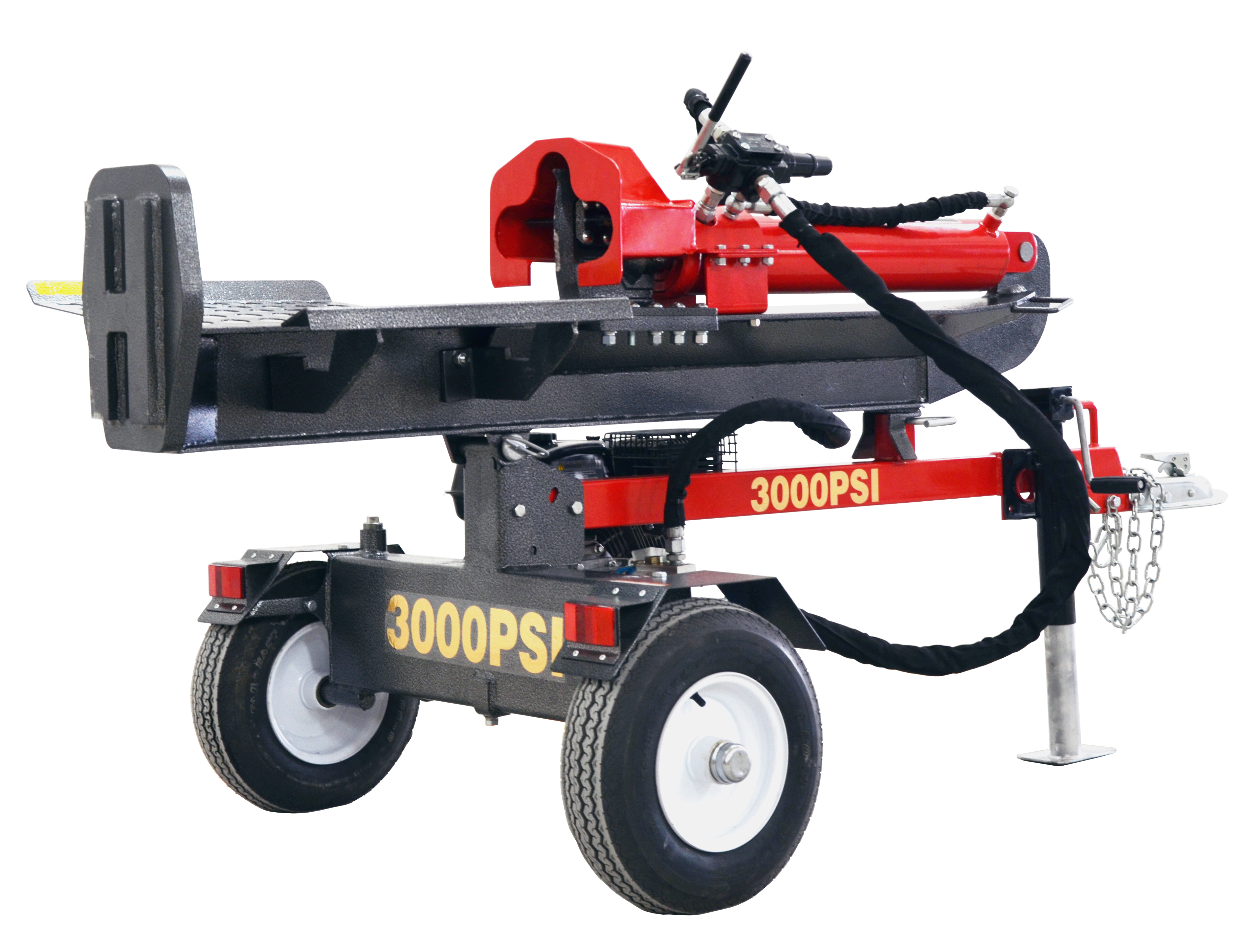

Wood Splitter 30 Ton Automobile Workshop Tools Equipment

50 Ton Gasoline Engine Powerful petrol hydraulic wood splitter

with Vertical and Horizontal firewood Log Splitter wedge

A log splitter is a piece of machinery or equipment used for splitting firewood from softwood or hardwood logs that have been pre-cut into sections (rounds), usually by chainsaw or on a saw bench. Many log splitters consist of a hydraulic or electrical rod and piston assembly and these are often rated by the tons of force they can generate. The higher the pressure rating, the greater the thickness or length of the rounds that can be split. The log splitter consists of all four major hydraulic components.

A new log splitter is generally thought of in the late fall to get wood ready to burn in our fireplaces. But log splitter comes in very handy any time of the year. Heavy storms tumble trees in the winter and spring. With a log splitter that fallen tree can be cut down to size for easy handling.

Features:

• Powerful – 30 tons of splitting capacity with a large 6.5HP Engine Power.
• Versatile – converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease.
• Efficient – 15-second cycle time, expanded operator area and dependable auto-return valve capable of over 200 cycles per hour.
• Reliable – 2-year limited warranty with free life time technical support from dedicated experts.

Detail Specification:

Model No.: YD31-001

• Rated Capacity: 30 Ton

• Clinder Diameter: Φ115mm

• Piston Stroke: 600mm

• Working Pressure: 3000PSI

•15 Second Cycle time

•21 Litre hydraulic reservoir Capacity

•Built-in log cradle holds logs up to 24-1/2 In.length

•Two-stages 11 Gallon per Minute pump

•6.5HP Engine Power

• N.W.: 272KGS

• G.W.: 320KGS

• Packing .: 1900X710X810MM

Versatile 30 Ton Hydraulic Wood Splitter

Gasoline 30 Ton Hydraulic Wood Splitter
